Major Features

• USB Input for Power and Video
• Capacitive Touchscreen
• Multi-Monitor Environment
• 10.1inch Touchscreen Resolution: 1,366*768
• Vesa 75 Standard
• PC and MAC Compatible

10.1” Capacitive USB touchscreenmonitor

MIMO UM-1070 presents the world’s first USB monitor with capacitive touchscreen!!!

Multi-Touchscreen Monitors

UM-1070, once again delivers an industry-first with the Magic Touch 10" secondary
monitorwith the amazing responsiveness of capacitive touch! Capacitive sensing technology has revolutionized the smart
phone and tablet market, now it is available as an interface for your computer, far surpassing the responsiveness and
overall user experience of traditional resistive touchscreens.
You can use the Magic Touch as a Tablet PC once you install the driver into the PC system by setting the option for Tablet
PC after you plug the USB cord of Magic Touch to the PC system since the Magic touch USB touchscreen monitor
supports multi-touch screen functionality.
The controls on the multi-touch screen change are depending on the task you’re performing. Use your fingers to pinch,
swipe, tap, or double to control Magic Touch.

Multi-Touch Screen for Control Panels

UM-1070, USB touchscreen monitor is a perfect solution for touchscreen control panels in such
applications as corporate videoconferencing, data entry/capture, smart home entertainment systems, and industrial/
manufacturing controls. It is also ideal for a range of other touchscreen monitor applications in healthcare, hospitality,
retail, education, sound/video editing, and many other industries.

Multi-Monitor Environment, Productivity improvement

Adding a second or third monitor to your computer increases your productivity and makes your work day easier by 10 ~
50%, that is multiple monitor solutions are giving us a productivity solution simply connecting MIMO USB monitor via just
USB port utilizing USB for both power and video input. No additional hardware such as video port, video cable or power
adapter required.

Supports a variety of Applications as a second monitor

● Increasing Productivity while using other main screen

- Monitoring Outlook/Mail, viewing and editing word file

● Multi-Media Player to control entertainment

- Watching Movies and Internet Video
- Quick access to toolboxes for online gaming
- Viewing Digital Photo Albums (PC based)

● Messenger for Social Relationship

- Instant Messenger, Internet Phone Applications
- Skype, MSN, Google Chatting
- Access to Facebook and MySpace to watch for friends
- Keep your Twitter Client up all the time.

● Widget Station

- Stock monitoring, Time, Weather, Memo, Viewing Calendars, exchanging rate, google news

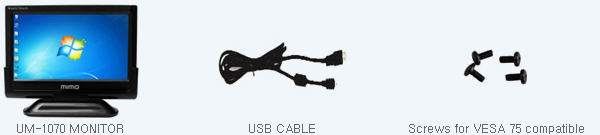

The Composition of Product

* Package Contents are subject to vary upon each model, please contact your local dealer if any items are missing.

Specification

	Specification	TSP Model
Display	Screen Size	10.1”
	Resolution	WSVGA(1,366*768)
	Display Colors	262,144
	Brightness	200 cd/m2
	Contrast Ratio	300:1
	Response Time	16msec
Signal Input	Touch Input	Capacitive Touch Screen Panel
	Video Input	USB2.0
	Connector	USB Mini B
Power	Power Input	USB Power (5V, 850mA)
	Power Consumption	~ 4.3 W
Operating Temperate	Temp. of glass surface	0 ~ 35 degree
Dimensions	Main Monitor	264(W) x 170(L) x 20(H) mm
	Base Dock	200(W) x 134(L) x 28(H) mm
	Monitor w/ Base Dock	264(W) x 218(L) x 134(H) mm
	Shipment Dimension (Retail Box)	310(W) x 290(L) x 125(H) mm

Special Viewing Feature : The Monitor Stand is removable and is interchangeable with the provided Easel Stand.

PC System Requirements

▶ PC H/W Requirements

- CPU : Intel Pentium / Celeron / AMD / K6 / Athlon / Duron 1.2GH or above

- RAM : 512MB or above

- USB : at least one or more USB 2.0 port

- 30MB HDD space above

▶ Operating System

- Full compatible with Window 8(64bit), Windows 8(32bit), Window 7(64bit), Windows 7(32bit)

- Display only mode compatible with Windows Vista(32bit), Windows XP(SP2 32bit), Windows 2000(SP4)

- MAC OSX Snow Leopard(32bit only), Leopard 10.5.6, Tiger 10.4.11
