Open Frame Monitor Series


MultimediaLink Open Frame Monitor series come from the Company’s long year’s know-how of customized LCD solutions for
existing and future markets, combining leading-edge touch screen and electronic technologies. Our new line-up of open frame
products supports a user-friendly mechanical design that enables customers to get a Zero-Bezel design with slim and light
features allowing efficient integration into any embedded applications.

Open Frame Monitor Products contain a wide variety ranging from single components - such as controller board, TFT LCD
kits and VESA mounting with integrated bracket - to complete system solutions built around TFT displays (diagonal sizes
in 3” to 42”) for commercial and industrial use with application in such areas as digital signage, POS, automation,
measurement engineering, medical instruments, and other mobile and embeded ICT applications. Also it offers other
attractive choices with touch screen integration such as resistive and projected capacitive.

Our Korean in-house developed products match various technical requirements with wonderful benefits and extra features
for every business domain on entry-level, mid-range and high-end applications at a globally competitive price.

Open Frame USB-Powered Touch Monitors

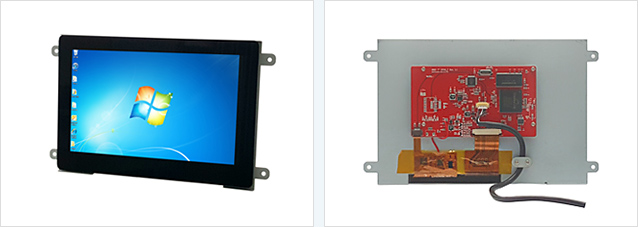

UM-760C-OF

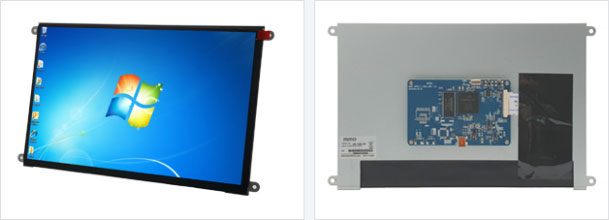

UM-1080C-OF

UM-1080-OF

Specification

Specification TSP Model
Display Screen Size 7.0" Wide 10.1” IPS
Active Area 153.6 (H) x 90.0 (W) mm 215.96 (H) x 135.60 (W) mm
Resolution WSVGA (1024*600) WXGA (1280*800)
Brightness 250 cd/mm 350 cd/mm
Contrast Ration 700:1 800:1
Response Time 10 ms 15 ms
Signal
Input
Touch Input Projected capacitive touch panel Projected capacitive touch panel
Video Input USB 2.0 USB 2.0
Connector USB USB
Power Power Input USB Power (5V, 500mA) SB Power (5V, 500mA)
Power Consumption 2.0 ~ 4.5W 2.0 ~ 4.5W
Feature UI, Pivot Pivot (Landscape, Portrait) Pivot (Landscape, Portrait)
System
Requirement
Processor Intel Pentium/Celeron/AMD/K6/ Intel Pentium/Celeron/AMD/K6/
Athlon/Duron 1.2GHz or above Athlon/Duron 1.2GHz or above
RAM 1GB or above 1GB or above
HDD 30MB HDD space above 30MB HDD space above
OS Win7, Win8, Ubuntu, Android, Linux Win7, Win8, Ubuntu, Android, Linux
Dimensions 180(W) * 120(H) * 6(D) mm 255(W) * 175(H) * 7(D) mm
Weight 410g
VESA Mount Rear mount optional Rear mount optional
Regulations CE, FCC, RoHS CE, FCC, RoHS
Warranty 1 year 1 year

Contact our sales team. They will know how to get you a better competitive advantage.
