Digital Signage / MBS-1080C-POE

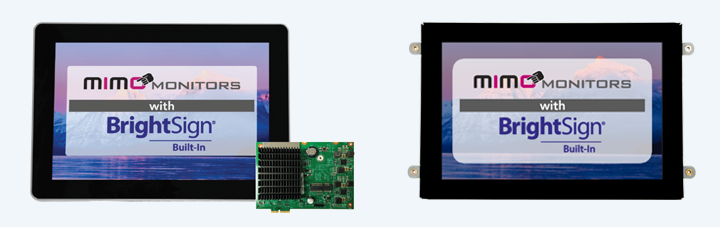

10.1” Display with BrightSign Built-In and Capacitive Touch

Two trusted powerhouse digital signage leaders, Mimo Monitors and BrightSign, have teamed up to introduce the brand new Mimo Vue with BrightSign Built-In Display. This display provides a fully encompassing, reliable, all-in-one digital signage solution that harnesses the power of the Mimo Vue technology and integrates the industry-leading BrightSign platform. The result is a high quality, easy-to-install digital signage solution that’s immediately digital signage ready, making it extremely simple to use, especially for those already reliant on the BrightSign platform. Durable, and instantaneously ready for commercial use. The Mimo Vue HD is the second generation in the Mimo Monitors 10.1” monitor line of brilliant and vivid premium quality displays that are sure to stand the test of time. Featuring a modern zero bezel design, a nearly 180 degree viewing angle from its bright, high contrast, IPS screen, and a resolution of 1280x800 that can display in either landscape of portrait orientations, this monitor is capable of providing a solution for any desired need.
The BrightSign Digital Signage Media Player is an HD Series 3 class BrightSign player. Built-in module is compatible with all BrightSign software, services, and supported CMS solutions.

Available with (MBS-1080C-POE) or without (MBS-1080C) Power over Ethernet for an clean single cable installation

Wi-Fi/Bluetooth Upgradable

The Wi-Fi/Bluetooth module enables you to network using Wi-Fi and operate Bright Beacon via Bluetooth. This module is installed inside the display for embedded wireless bluetooth functionality. It supports 802-11a/b/g/n protocols. Contact us for upgrade options

Major Features

  • H.265
  • 1080p60
    single decode
  • Mainstream
    HTML5
  • IP Streaming
  • IP Streaming Server
  • Digital
    Sound
  • BrightBeaconTM
  • B-Deploy
  • BrightWallTM
  • AutoWallTM
  • Mosaic Mode
  • Zones
  • Interactive
  • Live Feeds
  • Ceo-Fencing
  • Tagging
  • BrightSign App
  • Sign Preview
  • Remote Snapshot
  • Gigabit
    Networking
  • BrightPlatesTM

For more information about BrightSign and their capabilities, please visit www.brightsign.biz

Specification

Specification MBS-1080-POE MBS-1080-OF-POE MBS-1080C-POE MBS-1080C-OF-POE
Display Screen Size 10.1”
Aspect Ratio 16:10
Resolution WXGA (1280 x 800)
Brightness 350cd/m2
Contrast Ratio 800:1
View Angle 85/85/85/85 (Typ.) (L/R/U/D)
Panel Type IPS TFT-LCD
OS HS123 MODULE
Main BPA HS123 + I/O Board
Touch Technology Capacitive
Touch Point 10 points
Audio 2.0W Max.(8ohm) x 2
Connectivity LAN: IEEE 802.3a 10/100M/1000Mbps
IO Ports USB2.0, Micro SD slot, Earphone, POE port, DC 12V
Jack, RS-232 port,  Ext GPIO port, Power switch.
Power Input DC 12V Adaptor, PoE module(12V/30W)
Dimension 260(W) × 180(L) × 36.6(H) (mm) 280(W) x 175(L) x 35.5(H) (mm) 260(W) × 180(L) × 36.6(H) (mm) 280(W) x 175(L) x 35.5(H) (mm)
▶ 10.1” diagonal, IPS,
▶ 16:10 Aspect Ratio
▶ 1280x800 Resolution
▶ Multi Point Capacitive Touch (optional)
▶ Viewing angles: 85/85/85/85
▶ Contrast ratio: 800:1
▶ Luminance, White: 350 CD/m2
▶ HD class performance; runs BrightSign software or compatible CMS partners software
▶ H.265/H.264 video decode
▶ Video output up to 1080p60
▶ 10-bit video output (using H.265)
▶ Hardware accelerated HTML5 support
▶ Operating Temperature -10 to 50c
▶ VESA75 mounting for secure installation
▶ Power over Ethernet (POE -- Optional)
▶ Applications include:
- Retail POS environments
- Interactive Information Kiosks for Retail, Museums and Entertainment
- Signage for Corporate Conference Rooms, Schools, and Hospitality
- Medical Signage for Hospitals and Offices
▶ Mechanical drawings available upon request
