USB Touchscreen Monitor / UM-760R


World's First USB-driven
Touchscreen Monitor

  • DisplayLink
    certified
  • AUTO PIVOT
  • Mobility
  • USB 2.0
  • Single Touch

Application

  • Movie
  • Photo
    Frame
  • Internet
  • E-mail
  • Sports
  • Skype
  • Messenger
  • Stock
    Monitoring

Major Features

  • USB Input for Power and Video
  • Resistive Touchscreen
  • Multi-Monitor environment
  • 7inch Touchscreen Resolution: 1024*600
  • Slim, Foldable, Lightweight and Portable
  • PC and MAC Compatible

Why do you need the MIMO UM-760R USB monitor?

Mimo UM-760R USB monitor is a “Mobile Slider” Model
UM-760R is a 7 inch USB monitor with the ultra-coolest form factor; slim, sleek, foldable and highly portable adding more
useful desktop space with USB plug-n-play devices.
The integrated base-stand protects the TFT LCD screen from scratches when closed and the screen can be rotated to
display in landscape and or portrait modes.
UM-760R weighs less than a pound and measures less than an inch thick when folded. All power and data provided by
a single USB cord.

Multi-Monitor Environment, Productivity improvement

Adding a second or extended monitor to your computer increases your productivity and makes your work day easier by
10 ~ 50%, that is multiple monitor solutions are giving us a productivity solution simply connecting MIMO USB monitor via
just USB port utilizing USB for both power and video input.
No additional hardware such as video port, video cable or power adapter required.

Supports a variety of Applications as a second monitor

● Increasing Productivity while using other main screen

- Monitoring Outlook/Mail, viewing and editing word file

● Multi-Media Player to control entertainment

- Watching Movies and Internet Video
- Quick access to toolboxes for online gaming
- Viewing Digital Photo Albums (PC based)

● Messenger for Social Relationship

- Instant Messenger, Internet Phone Applications
- Skype, MSN, Google Chatting
- Access to Facebook and MySpace to watch for friends
- Keep your Twitter Client up all the time.

● Widget Station

- Stock monitoring, Time, Weather, Memo, Viewing Calendars, exchanging rate, google news

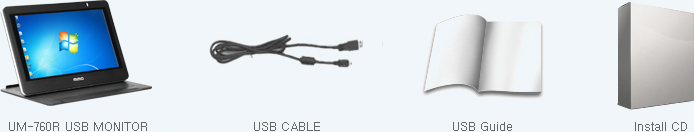

The Composition of Product

USB CABLEScrews for VESA 75 compatible

Specification

Specification TSP Model
Display Screen Size 7.0”Wide
Resolution WSVGA(1,024*600)
Display Colors 16.7M
Brightness 250cd/m²
Contrast Ratio 700:1
Response Time 10msec
Signal
Input
Touch Input Resistive Touchscreen Panel
Video Input USB 2.0
Connector USB Mini B
Power Power Input USB Power (5V, 500mA)
Power Consumption 2.0 ~ 4.5W
Feature UI.Pivot Pivot (Landscape, Portrait)
Dimensions Product Dimension (opened) 185(W) x 145(L) x 120(H)
Product Dimension (folded) 185(W) x 145(L) x 25(H)mm
Shipment Dimension 216(W) x 184(L) x 63(H)mm

Special Viewing Feature : The Monitor Stand is removable and is interchangeable with the provided Easel Stand.

PC System Requirements

▶ PC H/W Requirements
- CPU : Intel Pentium / Celeron / AMD / K6 / Athlon / Duron 1.2GH or above
- RAM : 512MB or above
- USB : at least one or more USB 2.0 port
- 30MB HDD space above
▶ Operating System
- Window 8(64bit), Windows 8(32bit), Window 7(64bit), Windows 7(32bit),
   Windows XP(SP2 32bit), Windows 2000(SP4)
- MAC OSX
- Snow Leopard(32bit only), Leopard 10.5.6, Tiger 10.4.11
