MIMO Vue HD Touchscreen Monitors / UM-1080C


2016 New Hybrid
Touchscreen Monitor

  • DisplayLink
    certified
  • AUTO PIVOT
  • VESA MOUNT
    OPTIONAL
  • HDML
  • USB 2.0
  • Multi Touch

Application

  • Movie
  • Photo
    Frame
  • Internet
  • E-mail
  • Sports
  • Skype
  • Messenger
  • Stock
    Monitoring

Major Features

  • Model UM-1080C : USB Input for Power & Video
    Model UM-1080CH : HDMI Input for Video & Audio
  • 10.1-inch 1280*800 IPS TFT LCD integrated with
    Capacitive Touchscreen
  • Unique set design for users-centric working environment
  • Best optimized for two or more monitors environment
  • 10.1inch Touchscreen Resolution: 1,280 * 800
  • VESA 75 mountable
  • PC and MAC Compatible

MultimediaLink New products Roll-out : 2016 New Hybrid Touchscreen Monitors

MIMO Vue HD is a new conceptual type of touchscreen monitor that achieves high usability by offering features of either USB interface or HDMI interface according to computer system tailored to customers demand. It’s the best optimized retail customer touchscreen monitor as well as ideally suited as a second monitor for customer’s dual display environment.

Realizing the perfect fusion of style and strength.

MIMO Vue HD comes pragmatically with unique external design features in having an almost bezel-less screen that let users concentrate on display, a multi-dimensional rearview enclosure and a solid metal stand having cord gateway pass-through that enables cord protection. Most of users want avoid setting cables and cords in an open-air front desk space. This unique set inside the steel stand enables users-centric working environment.

Inspiring your idea for best dual display environment.

MIMO Vue HD consists of USB I/F and HDMI I/F monitors for customer selection. It features with a 10-inch IPS TFT L CD panel with 1280 x 800 resolution, a Pcap multi-touch screen fully compatible for various computing operation systems such as Window 7, Window 8, Window 10, Ubuntu, Android and some Linux-based platforms,
integrated speakers(HDMI I/F model), USB or HDMI inputs and VESA mountable design. Perfectly ideal for both commercial and consumer applications.

Multi-Touch Screen for Control Panels

MIMO Vue HD is a perfect solution for touchscreen control panels in such applications as corporate videoconferencing, data entry/capture, smart home entertainment systems, and industrial/ manufacturing controls. It is also ideal for a range of other touchscreen monitor applications in healthcare, hospitality,
retail, education, sound/video editing, and many other industries.

Multi-Monitor Environment, Productivity improvement

Adding a second or third monitor to your computer increases your productivity and makes your work day easier by 10 ~ 50%, that is multiple monitor solutions are giving us a productivity solution simply connecting MIMO USB monitor via just USB port utilizing USB for both power and video input. No additional hardware such as video port, video cable or power adapter required.

10.1” Touchscreen USB Monitor

MIMO Vue HD presents the world’s first USB monitor with touchscreen.

Touch Screen for Control Panels

The MIMO Vue HD is a perfect solution for touchscreen control panels in such applications as corporate video conferencing, data entry/capture, smart home entertainment systems, and industrial/manufacturing controls.
It is also ideal for a range of other touchscreen applications in healthcare, hospitality, retail, education, sound/video editing, and many other industries.

Multi-Monitor Environment, Productivity improvement

Adding a second or third monitor to your computer increases your productivity and makes your work day easier by 10 ~ 50%, that is multiple monitor solutions are giving us a productivity solution simply connecting MIMO USB monitor via just USB port utilizing USB for both power and video input.
No additional hardware such as video port, video cable or power adapter required.

Supports a variety of Applications as an auxiliary or Touch Screen monitor

Increasing Productivity while using other main screen
Monitoring Outlook/Mail, viewing and editing word file
Multi-Media Player to control entertainment
- Watching Movies and Internet Video
- Quick access to toolboxes for online gaming
- Viewing Digital Photo Albums (PC based)
Messenger for Social Relationship
- Instant Messenger, Internet Phone Applications
- Skype, MSN, Google Chatting
- Access to Facebook and MySpace to watch for friends
- Keep your Twitter Client up all the time.
Widget Station
- Stock monitoring, Time, Weather, Memo, Viewing Calendars, exchanging rate, google news …

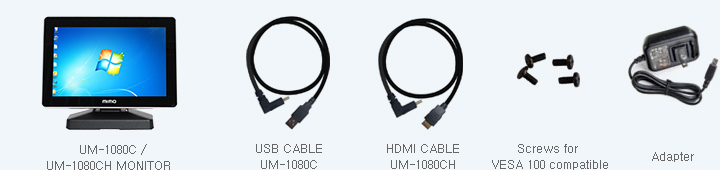

The Composition of Product

* Package Contents are subject to vary upon each model, please contact your local dealer if any items are missing.

Specification

Product name : MIMO VUE HD
Product Type : UM-1080C
(10.1" USB-Powered Touchscreen Monitor)
Product name : MIMO VUE HD
Product Type : UM-1080CH
(10.1" HDMI I/F Touchscreen Monitor)
Product Name 10.1 inch USB-Driven Touch Screen Monitor 10.1 inch HDMI Touch Screen Monitor
Model Name UM-1080C UM-1080CH
Display Display Size 10.1"(216.86mm X 135.60mm) 10.1"(216.86mm X 135.60mm)
Aspect Ratio 16:10 16:10
Resolution 1280x800(WXGA) 1280x800(WXGA)
Brightness 350cd/m2 350cd/m2
Contrast ratio 800:01:00 800:01:00
View Angle 85/85(R/L), 85/85(U/L) 85/85(R/L), 85/85(U/L)
Response time 14ms 14ms
Panel Type IPS IPS
Panel Backlight LED LED
Touch Touch technology Projected capacitive Projected capacitive
Touch Point 10 points 10 points
Support OS Windows8.1, Windows8,
Windows7(multi-touch) /
Windows XP(Single Touch)
MAC OS : UPDD program
Android : Not Support
Windows8.1, Windows8,
Windows7(multi-touch) /
Windows XP(Single Touch)
MAC OS : UPDD program
Android : Not Support
Audio Not Support 1.5W x 2 Speaker
Connector Mini USB Connector Mini USB Connector, Micro HDMI Connector
Interface USB 2.0 HDMI(Video/Audio), USB(Touch)
IR&KEY 3Keys(Brightness Up,
Brightness Down, Reset)
6Keys(Reset, Power On/Off, Cancel,
Menu/Enter, UP, Down)
LED Blue LED Blue LED
Dimension 260.74mm(W)x179.38mm(H)x17.50mm(D) 260.74mm(W)x179.38mm(H)x17.50mm(D)
Weight 568g(without USB Cable) 568g(without Cable)
Power Consumption 4W (USB 5V, 0.8A) 4W (DC 5V, 0.8A)
Operating Temp. 0~35degree 0~35degree
Operating Humidity 0~95% 0~95%
Warranty 1 Year 1 Year

Special Viewing Feature : The Monitor Stand is removable and is interchangeable with the provided Easel Stand.

PC System Requirements

▶ PC H/W Requirements
- CPU : 1.2Ghz or faster with support SSE2
- RAM : 2GB for 1 DisplayLink display
              4GB or more recommend for 2 or more DisplayLink displays
- Graphics Card : Microsoft DirectX 9 or later graghics device with WDDM driver
- USB : At least one USB2.0 HS port
- 30MB of free disk space.
▶ Supports OS
- Win : Windows8.1, Windows8, Windows7, Windows Vista, Windows XP(32bit)
- Mac : Yosemite 10.10, Mavericks 10.9, Mountain Lion 10.8
- Android : Lollipop or later(5.0 or later)
